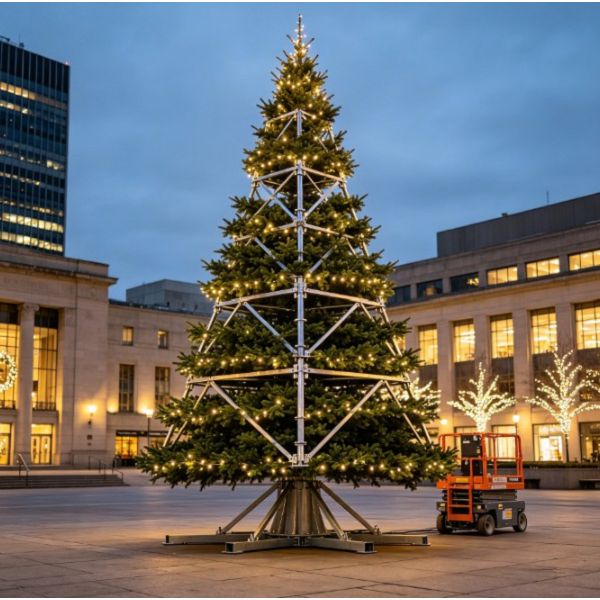

Transportable modular Christmas trees provide heavy-duty structural framework engineered for large-scale outdoor municipal plazas, commercial real estate complexes, and high-traffic public venues. Each tree utilizes a segmented, bolt-connected steel skeleton paired with flame-retardant branch modules, allowing multi-ton frameworks to be erected without heavy-duty crane deployment beyond standard requirements.
Key Structural Features
Segmented Steel Skeleton
Vertical Masts: Flanged connections secured by high-tensile structural bolts.
Radial Trusses: Pre-engineered horizontal arms distributing wind pressure evenly across the central mast.
Interlocking Base: Ballasted or anchor-bolted foundation frames transferring dynamic loads directly to concrete footings.
Rapid Installation Architecture
Numbered Sequences: Stamped metal identification tags on every structural tier matching master engineering diagrams.
Tool-Free Branch Insertion: Slip-fit branch terminals locking into receiving sockets via gravity-wedge pins.
Pre-Wired Trunks: Factory-installed IP65 distribution blocks linking vertical tiers through single-plug waterproof connectors.
Weather Resilience Engineering
Hot-Dip Galvanization: Steel immersion creating a minimum 80-micron corrosion-resistant coating.
Aerodynamic Foliage: Micro-perforated PVC/PE profiles lowering wind-drag coefficients to prevent structural shear.
UV-Stabilized Polymers: Hindered amine light stabilizers preventing color fading and polymer embrittlement.
Technical Specifications
|
Parameter |
Standard Tier |
Commercial Tier |
|
Height |
8m - 12m |
15m - 20m |
|
Base Diameter |
3.5m - 4.5m |
6m - 7.5m |
|
Total Weight |
1.2t - 1.8t |
3.5t - 5.2t |
|
Wind Load |
25 m/s (Scale 9) |
30 m/s (Scale 11) |
|
Steel Grade |
Q355B Structural |
Q355B / Q420 High-Strength |
|
Surface Finish |
Galvanized + Powder Coat |
Galvanized + Fluorocarbon |
|
Foliage Material |
Virgin PVC + PE |
Molded PE + Flame PVC |
|
Electrical Input |
110V - 240V AC |
220V / 380V Three-Phase |
|
Ingress Rating |
IP65 Connectors |
IP65 Connectors |
Commercial Applications
Municipal City Squares
Provides towering seasonal landmarks capable of withstanding open-field wind gusts without guy-wire stabilization.
Shopping Mall Atriums & Façades
Features hollow-core internal access designs for suspended light shows and localized perimeter anchoring on commercial podium roofs.
Theme Parks & Resorts
Engineered for high-frequency visitor interaction, featuring reinforced lower branches resistant to physical pulling and heavy impact.
Transport Hubs & Airports
Complies with strict public assembly fire codes and integrates low-voltage isolated power networks for continuous 24/7 operation.
Material Engineering
Structural Framing Elements
Cold-rolled structural carbon steel tubing and high-frequency welded square profiles offering high yield strength and torsional rigidity.
Foliage Needle Compounds
Extruded virgin polyvinyl chloride combined with low-density polyethylene injection-molded tips, maintaining elasticity across -30°C to +50°C.
Fastener Hardware
Grade 8.8 and Grade 10.9 hot-dip galvanized or Dacromet-coated bolts, nuts, and washers ensuring long-term resistance to electrochemical corrosion.
Cabling & Insulating Jackets
Pure copper multi-core flexible wires housed within flame-retardant, cold-resistant thermoplastic elastomer (TPE) outer sheaths.
Lighting & Decoration Options
LED String & Pixel Systems
Constant-Current Warm White LEDs: High-lumen SMD diodes with epoxy-sealed bulb bases preventing moisture ingress during heavy snow or rainfall.
Addressable RGB Pixel Clusters: DMX512-compatible smart lighting nodes allowing programmed dynamic color-chasing sequences and synchronized musical light shows.
Installation & Assembly Workflow
Foundation Leveling & Base Anchoring
Position the primary load-bearing base ring on a leveled concrete pad or deploy certified concrete ballast blocks; secure anchor bolts using calibrated torque wrenches.
Central Mast Erection
Use a truck-mounted hydraulic crane to lift and vertically align Tier 1 and Tier 2 central steel columns, fastening all flange bolts to specified tension ratings.
Radial Truss & Branch Insertion
Working from bottom to top, insert color-coded radial branch arms into corresponding mast receptacles, engaging gravity-locking pins sequentially.
Main Trunk Electrical Integration
Connect vertical trunk wiring harnesses using waterproof multi-pin plugs; test circuit continuity and voltage drop prior to foliage fluffing.
Foliage Fluffing & Ornament Hanging
Manually unfold branch tips outward following radial expansion angles to achieve uniform visual density, then hang designated ornaments and light strings.
Customization Parameters
Dimensional Scaling
Custom height variants engineered between 6.0 meters and 40.0 meters with proportional base diameter adjustments based on site footprint limitations.
Structural Color Matching
Epoxy powder coating available in standard matte green, pure snow white, metallic champagne gold, or custom RAL color codes to match corporate or municipal branding themes.
Foliage Density Profiles
Configurable needle packing densities ranging from standard commercial grade (80 tips per branch) to ultra-dense luxury architectural grade (150+ tips per branch).
Electrical Control Topologies
Integration of IoT smart controllers, twilight sensors, remote wireless DMX transmitters, or isolated generator-ready input panels for off-grid municipal locations.
Packaging & Transportation
Containerized Modular Nesting
Steel structural components are organized into stackable steel shipping racks, allowing 40-foot High Cube (40HC) container optimization to minimize international ocean freight costs.
Moisture-Barrier Protection
Electronic components and LED strings are vacuum-sealed in anti-static moisture-barrier bags with internal silica gel desiccant packs.
Protective Branch Bundling
Foliage branches are compressed in heavy-duty woven polypropylene sleeves to protect needle tips and reduce volumetric shipping space during transit.
Detailed Engineering Documentation
Every shipment includes laminated physical assembly manuals, bilingual CAD installation drawings, electrical schematic diagrams, and structural third-party test certificates.
Frequently Asked Questions
Q: What wind speed ratings do these modular Christmas trees support?
A: Standard models withstand wind speeds up to 25 m/s, while custom municipal landmark tiers undergo site-specific wind tunnel simulations to guarantee stability up to 35 m/s or higher.
Q: Are engineering calculation reports and structural blueprints provided for local permit approvals?
A: Yes, comprehensive structural calculation reports, wind-load resistance verification data, and 3D CAD/BIM drawing packages are supplied to assist with local municipal engineering permit applications.
Q: How many technicians are required for on-site assembly, and what heavy equipment is needed?
A: An average 15-meter tree requires a crew of 4 to 6 trained technicians, a scissor lift or boom lift, and a standard truck-mounted crane for vertical mast positioning, completing installation within 2 to 3 days.
Q: How are replacement parts handled if component damage occurs during seasonal storage?
A: All modular components-including individual branch trusses, wiring harnesses, and LED strings-are manufactured with standardized tolerances, allowing direct factory replacement without modifying the main structure.
