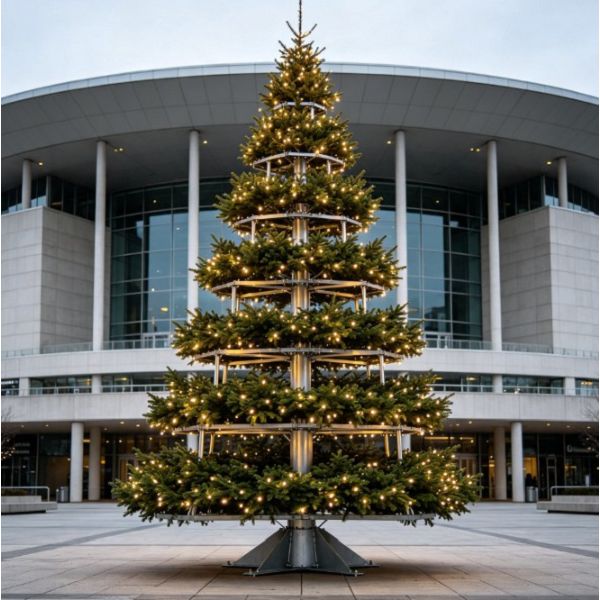

Engineered for large-scale architectural display, our multi-section modular Christmas tree utilizes a vertical stacking framework and heavy-gauge galvanized steel to deliver exceptional structural integrity, rapid site deployment, and dependable multi-season performance in demanding public venues.
Key Features
Interlocking Frame Alignment: Precision-welded socket joints align each vertical tier automatically, eliminating rotational drift during assembly.
Concealed Fastening System: Structural bolts and pins remain hidden beneath dense foliage layers, maintaining a clean visual profile from ground level.
Integrated Cable Management: Hollow central columns route power distribution harnesses internally, protecting wiring from environmental exposure and vandalism.
Load-to-Base Distribution: Weight transfers through graduated ring trusses directly to base ballast plates, preventing localized metal fatigue.
Technical Specifications
|
Parameter |
Specification Details |
|
Available Heights |
6m, 8m, 10m, 12m, 15m, up to 25m custom |
|
Base Diameter |
3.2m (10m height) scaling to 7.5m (25m height) |
|
Frame Material |
Q235B structural carbon steel tubing |
|
Surface Treatment |
Hot-dip galvanized (≥ 80 um) & TGIC-free powder coat |
|
Foliage Composition |
100% virgin PVC & PE blend, UV-stabilized |
|
Branch Density |
Minimum 45 branch tips per linear meter |
|
Wind Load Rating |
Up to 28 m/s (approx. 100 km/h) with ballasting |
|
Fire Retardant Standard |
B1 grade per DIN 4102 / NFPA 701 certified |
Commercial Applications
Municipal Plazas
Withstands open-air wind dynamics and public foot traffic in city center holiday displays.
Shopping Center Atriums
Meets strict indoor vertical clearance and fire code mandates for enclosed commercial spaces.
Hospitality & Corporate Lobbies
Provides heavy load-bearing support for intricate decorative ornaments and synchronized lighting systems.
Material Science & Surface Treatment
High-Yield Steel: Certified low-carbon structural tubing with minimum 235 MPa yield strength to absorb dynamic wind loads.
UV-Resistant Foliage: Extruded PVC film and injection-molded PE needles infused with specialized inhibitors against solar color degradation.
Corrosion Defense: Threaded fasteners utilize grade 8.8 zinc-nickel plating to prevent galvanic corrosion in high-humidity outdoor settings.
Lighting & Decoration Options
Pre-Wired Branch Harnesses: Commercial-grade LED string lights integrated directly into branch assemblies using IP65 waterproof quick-disconnect plugs.
Programmable Pixel Mapping: RGB addressable nodes compatible with DMX512 controllers for synchronized musical light shows.
Ornament Load Rating: Reinforced branch arms support hanging decorative spheres, giant bows, and illuminated motifs up to 5 kg each.
Installation & Site Deployment
Sectional Staging
Erected from the ground up using a crane or scaffolding, starting with the base ring and lifting successive tiers vertically.
Tool-Free Branch Insertion
Color-coded branch stems slide into pre-punched steel brackets, removing the need for manual wire binding or secondary tools.
Ballast Weight Systems
Base frames utilize interlocking concrete block receivers or steel water ballast tanks to secure ground stability.
Disassembly Efficiency
Tiers separate downward into modular stacking cages, reducing teardown labor time by 50% compared to traditional welded scaffolding.
Customization Options
Dimensional Adjustments: Custom height profiles, altered base-to-height ratios, and narrow-footprint configurations for restricted site boundaries.
Color Engineering: Custom Pantone-matched foliage colors, metallic finish frames, and frosted or snow-dusted needle treatments.
Electrical Integration: Voltage customization (110V, 220V, 380V three-phase) and custom junction box placement for localized power grids.
Packaging & Transportation
Modular Stacking Racks: Custom steel transport cages organize vertical poles, branch bundles, and hardware into standard shipping container footprints.
Moisture Barrier Protection: Components wrapped in heavy-duty polyethylene film with desiccant packs to prevent condensation damage during ocean freight.
Component Itemization: Each crated section is labeled with a detailed packing manifest corresponding to assembly blueprint zone markers.
Frequently Asked Questions
Q: What is the maximum wind speed the tree can tolerate without anchors?
A: The structure requires engineered ballasting or guy wires for heights exceeding 6 meters. With proper ballasting per our installation manual, the tree withstands wind speeds up to 28 meters per second.
Q: How many technicians are required to assemble a 12-meter tree?
A: A standard crew of 4 trained technicians equipped with a small crane or scissor lift can complete full mechanical assembly and branch fluffing in approximately 8 to 10 hours.
Q: Are the lighting systems replaceable if individual bulbs fail?
A: Yes. Lighting harnesses use parallel circuit designs and modular plug connections, allowing individual string segments to be removed and replaced without dismantling entire branch tiers.
Q: What documentation is provided for local building permit applications?
A: We supply complete structural calculation reports, third-party material test reports, wind load simulations, and fire retardant certificates to assist with municipal engineering approvals.
Q: What is the expected service life under outdoor conditions?
A: When maintained and stored properly in dry conditions during off-seasons, the galvanized steel frame offers a service life exceeding 10 years, and UV-stabilized foliage retains color integrity for 5 to 7 seasons.
