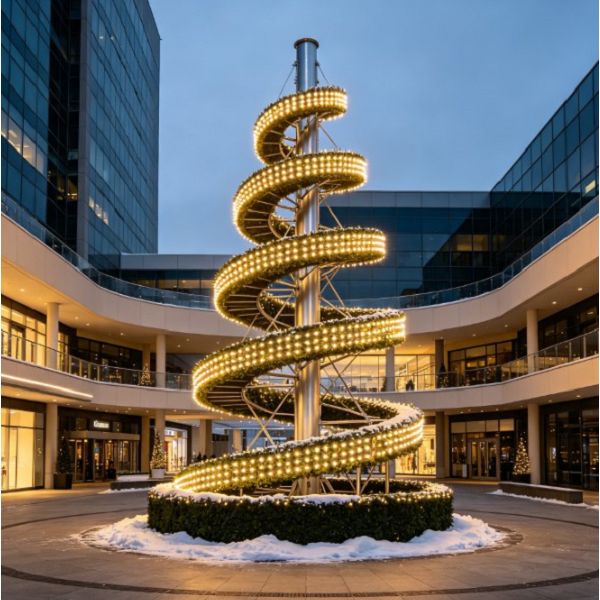

The spiral Christmas tree tower is a heavy-duty structural steel installation engineered for large-scale outdoor holiday displays, utilizing a helical framework wrapped with dense foliage mats and programmable LED arrays. Built for municipal projects and commercial plazas, this system features a sectional tubular steel mast, tension cable bracing, and tool-free interlocking tiers that withstand high winter wind loads while reducing assembly time compared to traditional guy-wire setups.
Core Structural Engineering
Central Support Mast: Seamless structural carbon steel pipe (Q235B/Q355B) ranging from 114mm to 325mm in outer diameter based on total height requirements.
Base Anchor Distribution: Heavy-duty structural steel channel baseplate secured via pre-set M20 to M30 anchor bolts to handle overturning moments in heavy winter gusts.
Helical Outriggers: Cold-formed steel profiles welded in a continuous pitch, providing a rigid mounting track for foliage mats and linear illumination.
Tension Guy System: High-tensile stainless steel wire ropes and turnbuckles connecting upper tiers to foundation anchors for redundant structural safety.
Technical Specifications
|
Parameter |
Specification Detail |
|
Standard Heights |
6m, 8m, 10m, 12m, 15m, 18m, 20m, 25m |
|
Base Diameters |
2.5m to 8.5m |
|
Wind Load Rating |
Beaufort Scale 10 (24.5 - 28.4 m/s) |
|
Operating Voltage |
Input AC 110V-240V; Output DC 24V |
|
Power Consumption |
800W to 4500W |
|
Ingress Protection |
IP67 connectors / IP65 LED modules |
Applications
Municipal Public Squares
City hall plazas, pedestrian promenades, and civic center roundabouts requiring high-visibility landmark installations.
Commercial Real Estate
Regional shopping center exterior courtyards, retail avenues, and mixed-use development focal points.
Hospitality & Tourism
Luxury resort entrances, hotel grand atriums, theme park central concourses, and cruise terminal plazas.
Corporate Campuses
Fortune 500 headquarters exterior reception zones and industrial park community centers.
Material Specifications
Primary Carbon Steel: Structural grade steel with a minimum yield strength of 235 MPa.
Hot-Dip Galvanizing: Full zinc immersion after fabrication complying with ISO 1461, achieving coating thickness exceeding 85 microns.
Exterior Powder Coating: Electrostatic exterior polyester powder finish, UV-stabilized and salt-spray tested to 1000 hours.
Foliage Needles: Virgin grade PVC and UV-resistant polyethylene (PE) branch tips flame-retardant rated to UL94 V-0.
Lighting & Decorative Integration
LED Illumination: Epistar high-lumen SMD LEDs embedded in flexible silicone tubing with a 120-degree beam angle and 50,000-hour lifespan.
Color Configurations: Warm White (3000K), Cool White (6500K), RGB full-color programmable, and DMX512 pixel-addressable dynamic chasing effects.
Foliage Density: Dual-layer mixed needle construction combining flat PVC needles and molded 3D PE branch tips for realistic volume and light diffusion.
Power Distribution: Waterproof central distribution boxes equipped with industrial-grade circuit breakers and 10kA surge protection devices.
On-Site Installation Sequence
Foundation Preparation: Requires a level reinforced concrete slab or pre-cast blocks matching the exact bolt-circle diameter of the tower base.
Lifting & Erection: Installed via crane or hydraulic gin pole; individual modular tiers are hoisted sequentially and secured by bolted flange connections from bottom to top.
Electrical Integration: Plug-and-play waterproof harnesses link each tier directly to the main control panel at the base, eliminating manual on-site wire splicing.
System Commissioning: Final testing verifies voltage stability across upper tiers, DMX signal synchronization, and structural plumb alignment via digital inclinometers.
Packaging & Logistics
Mast Bundling
Steel structural masts bundled in protective woven geotextile fabric to prevent powder-coat scratching during transit.
Tier Crating
Spiral ring segments and foliage mats packed in heavy-duty export-grade plywood crates with moisture-barrier lining.
Electrical Protection
LED strings and control boxes packed in anti-static bubble wrap inside reinforced double-wall corrugated cartons.
Container Optimization
Engineered modular dimensions fit standard 40-foot High Cube (40HQ) containers, reducing ocean freight volume by 30%.
Custom Engineering Options
Height & Footprint Scaling: Tailored structural designs from 5 meters to 30 meters with custom aspect ratios to fit restricted footprint dimensions.
Visual Branding: Custom powder-coat RAL color matching for steel frames and specific Kelvin tuning for corporate color alignment.
Environmental Load Adjustments: Engineering calculations modified for high seismic zones, extreme snow accumulation regions, or coastal hurricane zones.
Control Integration: Support for DMX512 protocol, wireless remote management, IoT scheduled power switching, and ambient light sensors.
Manufacturing & Quality Control
Cutting & Forming: CNC laser cutting machines and computer-controlled pipe bending equipment ensure dimensional tolerance within ±0.5mm across all structural joints.
Welding Standards: Structural welding performed by certified technicians adhering to AWS D1.1 / ISO 3834 standards, with ultrasonic testing on critical load-bearing joints.
Coating Inspection: Immersion pickling, fluxing, and molten zinc bath immersion monitored via magnetic thickness gauges; adhesion tested via cross-hatch methods.
Factory Pre-Assembly: 100% of custom towers undergo trial erection and electrical burn-in testing in the assembly yard prior to final disassembly and packaging.
Frequently Asked Questions
Q: What foundation requirements are necessary for installation?
A: A reinforced concrete foundation pad designed to withstand calculated overturning moments, complete with embedded anchor bolts sized to engineering drawings provided prior to shipment.
Q: How are wind loads calculated for specific regional installations?
A: Structural engineers utilize local meteorological wind speed data, ASCE/EN standards, and topographical factors to determine required mast diameters, wall thickness, and guy-wire tension specifications.
Q: Can lighting effects be synchronized with external controllers?
A: Yes, integrated control systems support DMX512 and Art-Net protocols, allowing connection to external media servers, sound-activated controllers, or automated scheduling timers.
Q: What maintenance is required during the operational season?
A: Periodic inspection of foundation anchor bolts, tension cable tightness, and electrical connection box seals is recommended bi-annually or after severe weather events.
Q: What is the standard production lead time for bulk orders?
A: Standard manufacturing requires 25 to 35 calendar days following drawing approval and deposit receipt, depending on seasonal volume and custom engineering requirements.
