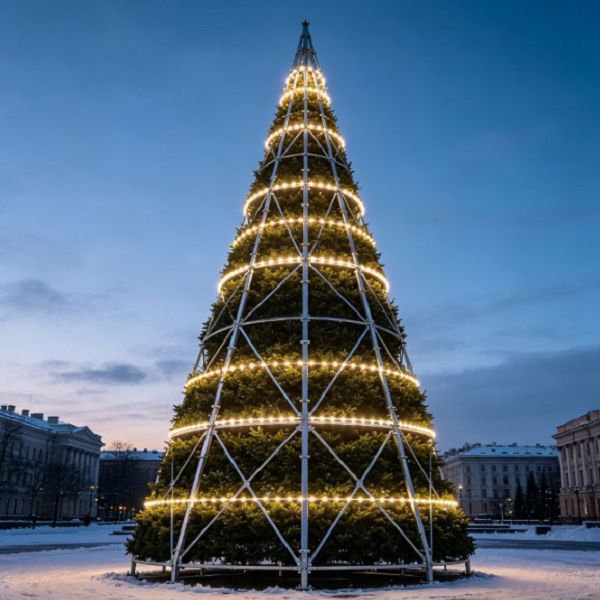

The decorative Christmas tree tower is a heavy-duty, modular structural steel framework engineered for large-scale outdoor holiday displays in municipal squares and commercial plazas, featuring a conical skeleton assembled from hot-dip galvanized steel components, secured by high-tensile fasteners, and decorated with commercial-grade flame-retardant foliage and programmable LED illumination systems designed to withstand harsh winter weather conditions.
Architectural Features
Modular Conical Framing
Sectional bolt-together rings and vertical ribs allow systematic assembly without heavy field welding. Stackable tiered sections reduce shipping volume and fit standard international container dimensions.
Dynamic Wind Resistance
Engineered frame geometry distributes lateral wind loads evenly across a wide ballast-compatible base footprint. Open-mesh structural design permits wind to pass through, significantly lowering aerodynamic drag compared to solid panels.
Integrated Power Distribution
Pre-wired harness distribution drops down structural channels to eliminate tangled exterior cabling. Quick-connect IP67 plug-and-play lighting nodes prevent moisture ingress during heavy snowfall or rain.
Service-Accessible Layout
Internal vertical climb ladders and secure platform rings allow technicians to service upper-tier fixtures safely. Modular string circuits isolate electrical faults so single-segment failures do not darken entire vertical zones.
Structural Anatomy
Base Foundation Ring
Heavy structural steel load-bearing base ring anchored directly to concrete foundations via embedded anchor bolts and leveling shims.
Main Conical Body
Telescoping vertical columns and horizontal tension ring tiers forming the primary structural cone up to the apex anchor point.
Center Support Mast
Heavy-wall central steel pipe running from base to apex, absorbing primary vertical dead loads and acting as the main cable run conduit.
Apex Star Mount
Reinforced mounting flange welded to the top mast section, rated to support oversized 3D illuminated toppers under high torsional wind loads.
Technical Specifications
|
Parameter |
Standard Range |
Customization Limits |
|
Height |
6m to 25m |
5m to 30m |
|
Footprint |
3.2m to 8.5m dia. |
Site-engineered |
|
Wind Rating |
120 km/h (Force 12) |
Regional code match |
|
Voltage |
220V/380V AC |
24V DC / Local grid |
|
Power |
3.5 kW to 18 kW |
LED density based |
Application Environments
Municipal Civic Plazas
Large public gathering spaces requiring high-visibility seasonal landmarks that withstand dense pedestrian traffic and adverse winter weather.
Commercial Shopping Centers
Exterior parking lot entrances and central courtyards designed to draw seasonal foot traffic and enhance evening retail ambiance.
Corporate Campuses
Enterprise facility entryways and corporate headquarters grounds requiring durable, professional holiday infrastructure.
Theme Parks and Resorts
High-traffic entertainment venues needing continuous-duty festive displays rated for long operational hours in public zones.
Material Composition
Primary Framework
Q235B and Q355B structural carbon steel tubing and angle iron selected for high yield strength and cold-weather impact resistance.
Corrosion Protection
Hot-dip galvanized coating complying with international standards with a minimum zinc layer thickness of 85 micrometers, finished with a UV-resistant polyester powder coat.
Foliage Needles
100% virgin PVC and PE composite extrusion with built-in UV stabilizers and chemical fire retardants achieving UL94 V-0 ratings.
Fastener Hardware
Grade 8.8 and Grade 10.9 high-tensile steel bolts treated with Dacromet anticorrosion surface plating to prevent galvanic reaction.
Illumination and Control
LED String Configuration
Epistar SMD LED chips encapsulated in thick silicone housing, spaced at 10cm intervals on heavy-duty rubber power cords.
Optical Performance
Warm white, cool white, or RGB full-color addressable options delivering a luminous flux of 120 lumens per meter with a color rendering index exceeding 80.
Ornamental Integration
Shatterproof blow-molded polyethylene baubles and acrylic decorative motifs secured to the steel grid using stainless steel safety lanyards.
Control Architecture
Industrial DMX512 controllers housed in waterproof outdoor NEMA 4X steel cabinets supporting automated daily timers and remote synchronization.
Installation Protocol
Site Preparation
Pouring reinforced concrete foundation pads embedded with certified anchor bolt cages according to civil engineering load drawings.
Ground-Level Assembly
Bolting together base ring sections and assembling the lower three tiers on flat ground using standard truck cranes or mobile elevated work platforms.
Vertical Hoisting Sequence
Lifting pre-assembled tier sections sequentially onto the central mast, securing each level with high-tensile torque-verified fasteners before raising the next segment.
Final Commissioning
Testing electrical insulation resistance, verifying DMX signal routing, and inspecting all mechanical torque points prior to public opening.
Packaging and Logistics
Component Sorting
Steel structural members bundled by tier level and color-coded with durable metal tags matching installation schematic drawings.
Protection Standards
Foliage branches compressed and packed in heavy-duty woven polypropylene bags; delicate LED strings coiled on plastic reels and wrapped in bubble polyethylene.
Container Loading
Engineered packing plans optimized for standard 40-foot high-cube dry containers, utilizing wooden pallets and steel bracing to eliminate transit shifting.
Customization Options
Dimensional Engineering
Custom height adjustments matched to specific site clearance requirements and structural load codes.
Color Palette Formulation
Tailored foliage coloration formulas matching specific corporate brand Pantone codes or traditional regional aesthetic preferences.
Illumination Programming
Custom pixel-mapping layouts, interactive motion sensors, and bespoke lighting effect sequences programmed to client specifications.
Structural Load Modification
Enhanced wind-load engineering calculations certified for coastal zones or high-altitude mountain locations experiencing extreme meteorological conditions.
Manufacturing and Quality Control
Raw Material Verification
Incoming steel plates and tubes undergo chemical composition testing and ultrasonic thickness inspection prior to release to production.
Precision Fabrication
CNC laser cutting, automated band sawing, and robotic CO2 gas metal arc welding ensure consistent dimensional accuracy across modular connection points.
Surface Treatment Execution
Multi-stage acid pickling and alkaline degreasing immersion tanks followed by controlled molten zinc hot-dip galvanizing baths and electrostatic powder curing ovens.
Pre-Shipment Trial Assembly
Full-scale factory trial erection of sample production towers to verify absolute bolt-hole alignment, structural plumb, and electrical harness continuity.
Frequently Asked Questions
Q: What foundation is required for installation?
A: A reinforced concrete slab or engineered concrete piers designed to withstand calculated overturning moments and pull-out forces specified in our structural calculation report.
Q: How many technicians are needed for assembly?
A: A standard crew of 4 to 6 workers equipped with a truck-mounted crane or scissor lift can assemble a 15-meter tower within 3 to 4 working days.
Q: What is the expected operational lifespan?
A: The hot-dip galvanized and powder-coated steel structure provides an operational lifespan exceeding 15 years, while LED lighting components are rated for 50,000 continuous operating hours.
Q: Are replacement parts readily available?
A: All structural modules and electrical harnesses are manufactured with strict dimensional tolerances, allowing exact field replacement of individual damaged sections without modifying adjacent framework.
