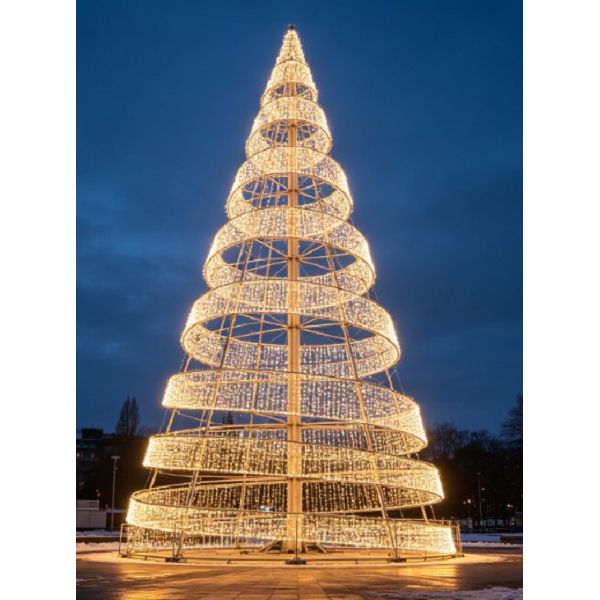

Engineered for municipal and commercial large-scale outdoor holiday lighting projects, this large spiral LED Christmas tree combines a high-tensile steel frame with weather-resistant illumination modules to deliver reliable structural stability and high-impact visual performance in demanding winter environments.
Structural Engineering
Center Mast Assembly: Heavy-wall galvanized steel tubing providing primary vertical load-bearing capacity and wind-shear resistance.
Spiral Frame Ribs: Precision-bent steel wire or rod rings welded at calculated intervals to maintain uniform conic contours under tension.
Base Anchoring System: Laser-cut square flange plates secured with expansion anchor bolts or weighted ballast frames to withstand localized wind loads up to 30 m/s.
Modular Breakdown: Sectional vertical segments utilizing slip-fit joints or high-tensile bolt connections to minimize crane requirements during erection.
Technical Specifications
|
Parameter |
Specification Details |
|
Height Options |
6m, 8m, 10m, 12m, 15m (custom available) |
|
Base Diameter |
2.2m to 5.0m proportional scale |
|
Operating Voltage |
Input 110V/220V AC; System 24V DC |
|
Ingress Protection |
IP65 rated connectors and drivers |
|
Wind Load Rating |
Up to Beaufort Scale 10 (24.5 - 28.4 m/s) |
|
Compliance |
CE, RoHS, UL/ETL power components |
Materials & Surface Treatment
Frame Material
Q235 structural carbon steel with hot-dip galvanized finish conforming to international corrosion standards.
Surface Coating
Outdoor-grade polyester powder coating applied electrostatically and thermally cured for UV resistance.
LED Encapsulation
UV-stabilized silicone housing protecting internal diode arrays against yellowing and thermal degradation.
Fasteners
Grade 304 stainless steel bolts, nuts, and washers preventing galvanic corrosion at structural joints.
Performance Features
Corrosion Resistance: Dual protection via hot-dip galvanizing underneath exterior powder coating ensures minimum 5-year outdoor deployment.
Wind Shear Mitigation: Open spiral geometry allows wind pass-through, significantly reducing lateral drag forces compared to solid trees.
Thermal Management: Low-power-density LED layout prevents heat accumulation, maintaining uniform luminous flux down to -30°C.
Load Distribution: Engineered weight transfer from spiral perimeter down to reinforced center base plates, eliminating sagging.
Lighting & Visual Effects
Luminous Source
High-efficacy LED chips delivering steady-state illumination or dynamic color-changing effects via DMX512.
Color Options
Warm White (2700K), Cool White (6500K), RGB, or RGBW multi-channel configurations.
Visual Uniformity
Diffused light distribution eliminating hot spots and maintaining consistent brightness along the spiral length.
Controller Integration
Weatherproof control boxes supporting external timing, DMX console linkage, or preset loops.
Site Installation
Site Preparation: Flat concrete pad or ballast block setup required prior to structural erection.
Assembly Sequence: Base ring installation, central mast vertical hoisting, intermediate arm expansion, and tension adjustment.
Electrical Connection: Plug-and-play IP67 rated main power harnesses connecting regional sub-circuits to central breaker panels.
Tool Requirements: Standard metric wrench sets, torque wrenches, alignment pins, and light-duty mobile elevating platforms.
Transportation
Packaging Method: Knock-down modular design packed in heavy-duty corrugated cartons or welded steel shipping frames.
Container Optimization: Component dimensions calculated to fit standard 40-foot High Cube containers, reducing ocean freight volume.
Protection Measures: Moisture-barrier wrapping on electronic components and shock-absorbing foam separation between steel members.
Documentation: Detailed bill of materials, structural assembly drawings, and electrical schematics included in every crate.
Applications
Municipal Plazas
Central holiday focal points for city downtown revitalization projects and winter festival gatherings.
Commercial Real Estate
Exterior courtyards and entry plazas of shopping malls driving seasonal foot traffic and engagement.
Hospitality & Tourism
Resort entrances, theme park main streets, and public boardwalks operating in coastal zones.
Transportation Hubs
Forecourts of international airports and railway stations requiring robust, high-visibility structures.
Customization Options
Dimension Adjustments: Custom height increments from 5m to 20m tailored to specific architectural clearance limits.
Visual Configuration: Customized pitch angles, dual-helix arrangements, and integrated top star or finial geometries.
Electrical Customization: Specific regional voltage inputs and localized plug configurations.
Control Protocols: Integration with existing municipal lighting management systems via RS485 or wireless RF transceivers.
Manufacturing Process
Cutting & Forming: CNC laser cutting and computer-controlled mandrel bending ensuring precise radius consistency across members.
Welding Standards: Shielded metal arc and CO2 gas shielded welding executed by certified structural welders following steel codes.
Surface Treatment: Multi-stage chemical cleaning, acid pickling, galvanizing bath immersion, and electrostatic powder spray lines.
Quality Inspection: Dimensional accuracy verification, 48-hour continuous burn-in electrical testing, and water immersion tests.
FAQ
Q: What foundation requirements are necessary for installation?
A: A level concrete slab with embedded anchor bolts or sufficient surface area to place calculated steel ballast weights is required.
Q: Can lighting effects be synchronized with external audio?
A: Yes, optional DMX controllers support sound-to-light reactive programming and remote timeline triggering for music shows.
Q: How are replacement parts handled if LED strings fail?
A: The harness utilizes modular plug-in segments, allowing technicians to replace single damaged runs without disassembling the steel.
Q: What is the expected operational lifespan?
A: The galvanized and powder-coated steel frame is engineered for 10 years, while LED modules are rated for 50,000 operational hours.
